- Dimensions: 18300mm * 3600mm (+200mm for each side)* 2800mm
- Loading capacity: 120 tons
- Axle: 4 axles * 20T
- Suspension: Heavy machinery suspension
- Tires: 16 pcs
- Kingpin: 50 #, 90 #
- Braking system: WABCO
- Electrical system: 24V, LED lights
Product Parameter
|
Name： |
Step deck trailer with removable gooseneck |
Tare Weight: |
Around：22T |
|
Size(mm): |
18300*3600*2800 |
Axle: |
4 axles * 20T axles, |
|
Main beam: |
Height: 350mm, Top flange: 20mm, under flange:30mm, middle flange:14+14mm, material: Q550D |
Leaf spring: |
10 pcs, Widen and thicken |
|
Side beam: |
Height:280mm, Top flange: 12mm, under flange: 10mm, middle flange: 12mm |
Brake chamber： |
Standard |
|
Cross beam: |
Bending steel 5mm, the space is 450mm |
Rim： |
#8.5, thicken |
|
King pin: |
90# |
Tyre： |
12.00R20 * 16pcs |
|
Suspension: |
Reverse suspension, height 280 |
Air tanker： |
3 pcs |
|
Floor: |
4mm diamond plate |
Emergency valve： |
WABOCO |
|
Power unit |
18hp single cylinder diesel engine |
Gas circuit： |
&12 red yellow nylon tube |
|
Draw plate： |
Thickness 16mm |
Tool box: |
2pcs |
|
Tyre carrier： |
~ |
Shaft head wrench |
1 pc |
|
Payload： |
100 T |
Paint： |
One anti-rust paint, one polyurethane, wax spray |
|
Electric system： |
Voltage: 24V, socket: in line with the Chinese national standard seven-core socket, LED lights, wiring harness: 7-core waterproof wiring harness. |
||
Product Details

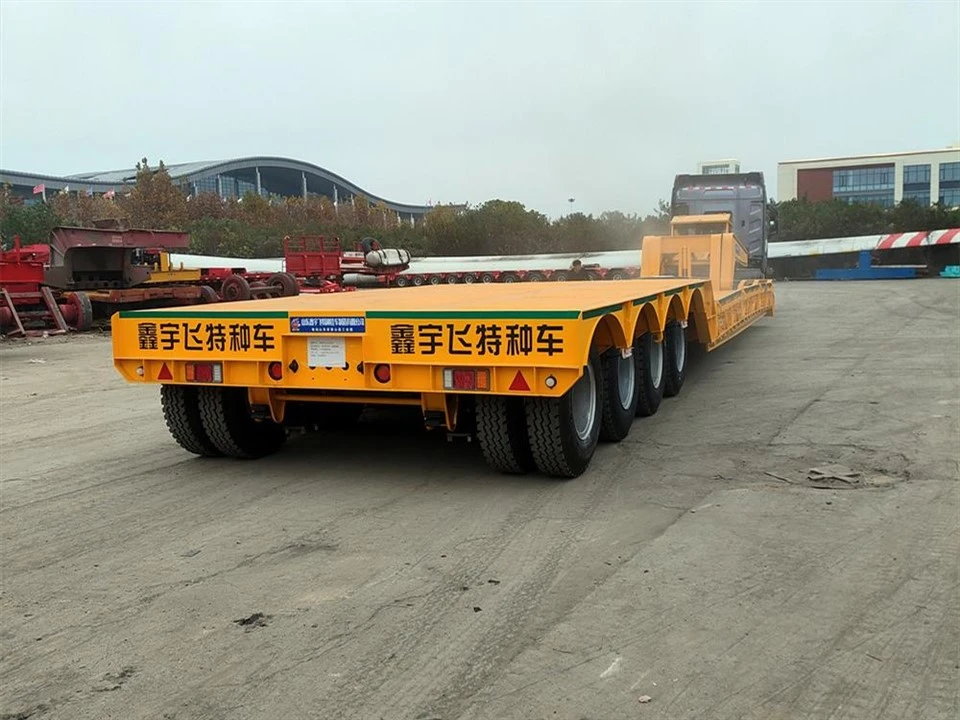

Gooseneck removable lowbed trailer advantages
Removable gooseneck
The gooseneck section allows disassembly, which increases the flexibility and adaptability of the vehicle.
Low body design
The low body design improves the stability of the lowbed trailer, and also enables the vehicle to pass more routes during the driving process.
Strong carrying capacity
The gooseneck detachable lowbed semi-trailer has a strong carrying capacity and is able to carry heavy, large or irregular sized cargo.
Packaging and delivery
Liangyu trailer will be waxed before it is packed to prevent seawater from corroding the trailer surface.
We will choose the most suitable transportation method for customers and reduce the transportation costs of customers.
The trailer can be shipped by land carriage for China's neighboring countries, or sea transportation by RORO or by Bulk for oversea countries.
LIANGYU company introduction

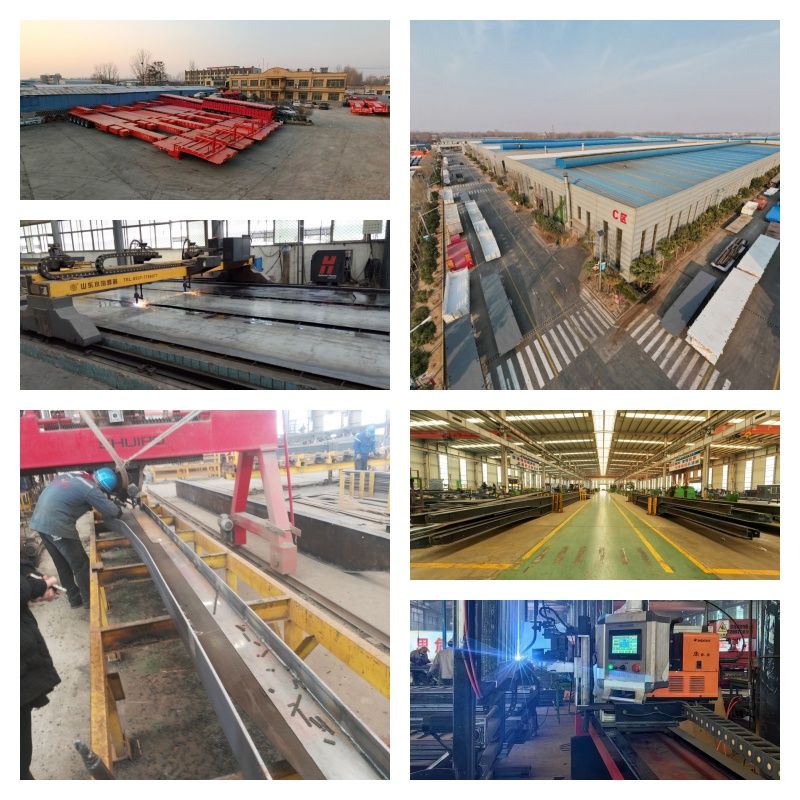

Shandong Liangyu Special Vehicle Co., Ltd. is specialized in the production of all kinds of semi-trailers, the trailer factory has advanced production equipment, automatic welding line and spraying process, the main products include wind turbine blade transport trailer, heavy machinery transport trailer (lowbed semi trailer), container trailer, tank trailer etc. The factory strictly follows international quality standards and is ISO certified to ensure vehicle safety, durability and efficiency. The company is equipped with a research and development team, which can customize the design to meet different transportation needs, and provide a perfect after-sales service system to serve the logistics, freight and special transportation industries, and is committed to providing customers with cost-effective transportation solutions.
Customers' visit
With the continuous expansion of international business of semi-trailer, we have welcomed many overseas partners, and signed exclusive agency agreements with partners in some countries. This not only brings new development opportunities for the company, but also further enhances the global influence of the brand. In the future, we will continue to deepen international cooperation and provide better products and services for global customers.
Liangyu Company's Many Products
